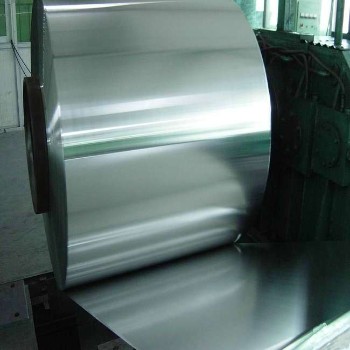

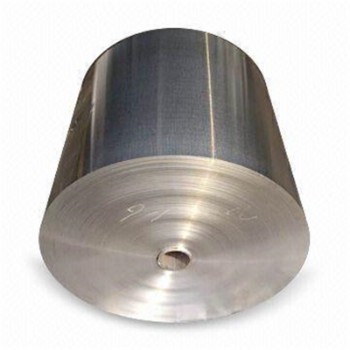

PPGI Ral 9003 Prepainted Galvanized Steel Coils
| Type of
coating process |
Front : double coated & double drying
Back : double coated & double drying single-coated & double drying |
| Type of substrate | Galvanized steel / Galvalume steel /Aluminum |
| Thickness | 0.14- 2.0mm |
| Width | 600-1500mm |
| Painted Surface | Printing / Filmed / Matte / Wrinkled |
| Paint Top | 15 – 35 Microns |
| Paint Back | 5 – 35 Microns |
| Package Weight | 2 – 4 Tons |
| Coating Types | Top Painted : PVDF / HDP / SMP / PE / PU
Primer Painted : Polyurethane / Epoxy / PE Back Painted : Epoxy / Modified Polyester |
| Package | Covered with a layer of plastic film and cardboard,packed on the wooden pallets,bound with iron belt,loaded in the containers. |
| Monthly Output | 10000 tons |
| Remarks | Insurance is all risks and accept the third party test |
| Loading Port | Tianjin / Qingdao / Shanghai Port |
